Description
Advantages of the Wagner Tuning Intercooler:
- improved cooling capacity
- 85 % larger inflow area
- 131% more net volume
- weight 6Kg
- Lower back pressure
- Plug & Play
Fiat 500 Abarth 595 1,4 Turbo 103-132KW/140-180 PS (2015-2022)

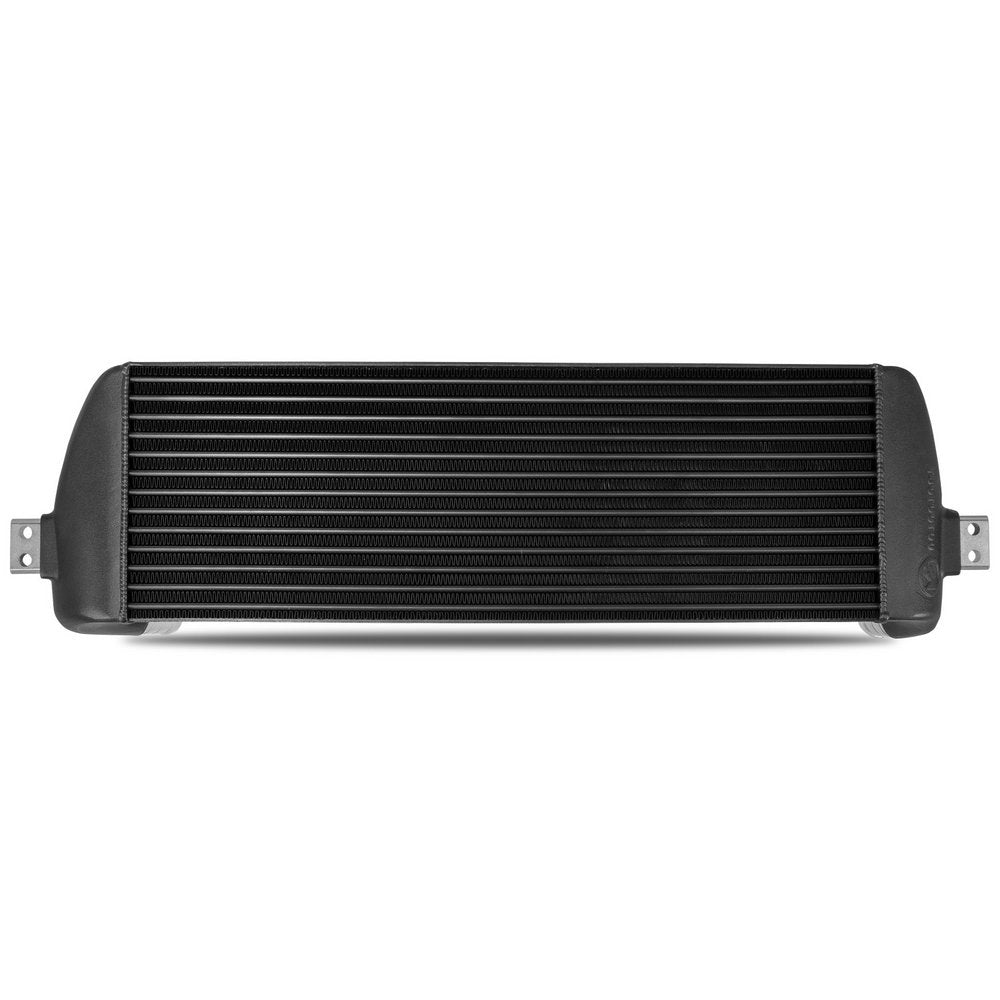

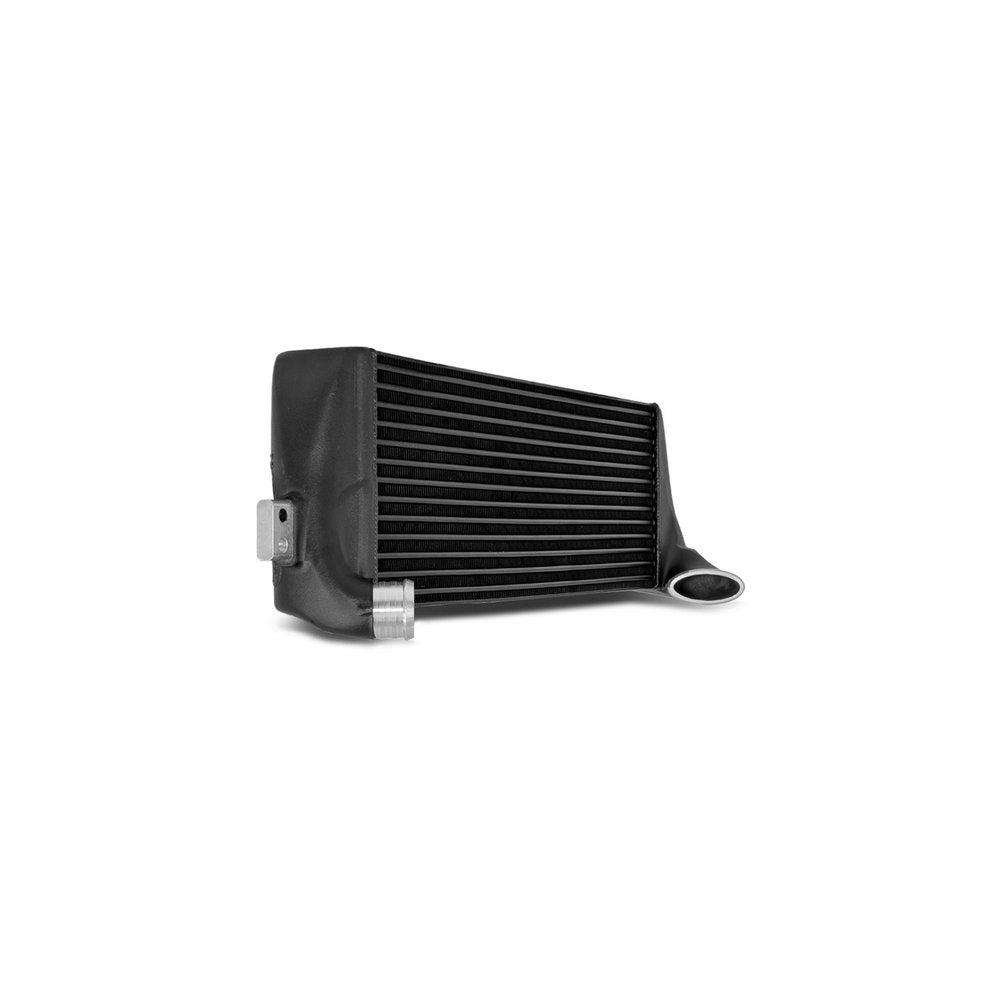

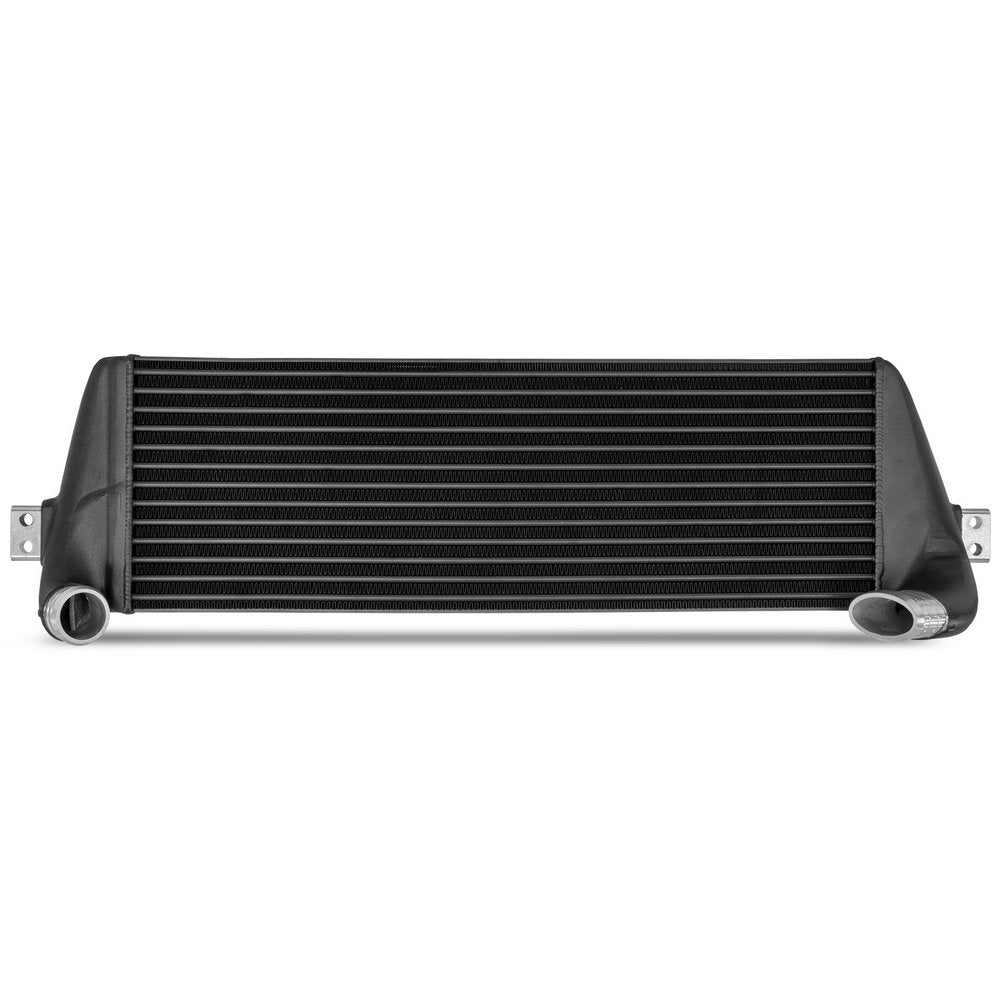

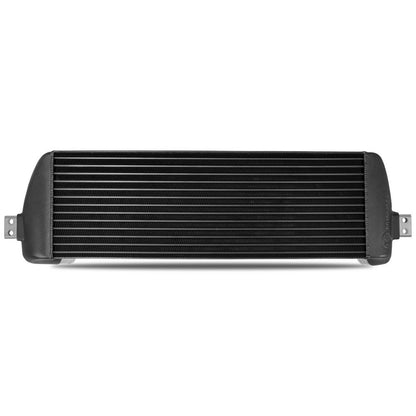

The Wagner Tuning high-Performance Intercooler has a new Competition Core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially For the requirements of the Fiat 500 Abarth. This high-Performance Core offers an 85% larger frontal surface and 131% more Core volume compared to the stock Intercooler. The Aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (For an ideal internal airflow).
For the best possible heat exchange, the Wagner Tuning high-Performance Intercooler is installed in the front of the car, replacing the two original side Intercooler. The newly developed elliptical hose Connection at the outlet of this Intercooler and the Wagner Tuning silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete Intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.
An anti-corrosion coating with heat-conducting properties protects the Wagner Tuning Intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original Intercooler and is easy to perForm (plug and play). All our products are subject to a continuous quality monitoring.
Dimensions stock Intercooler (2x):
190 mm x 175 mm x 64 mm
V = 4,3 Liter
A = 665 cmý
Dimensions Wagner Tuning Intercooler:
600 mm x 205mm x 80 mm
V = 9,8 Liter
A = 1227 cmý

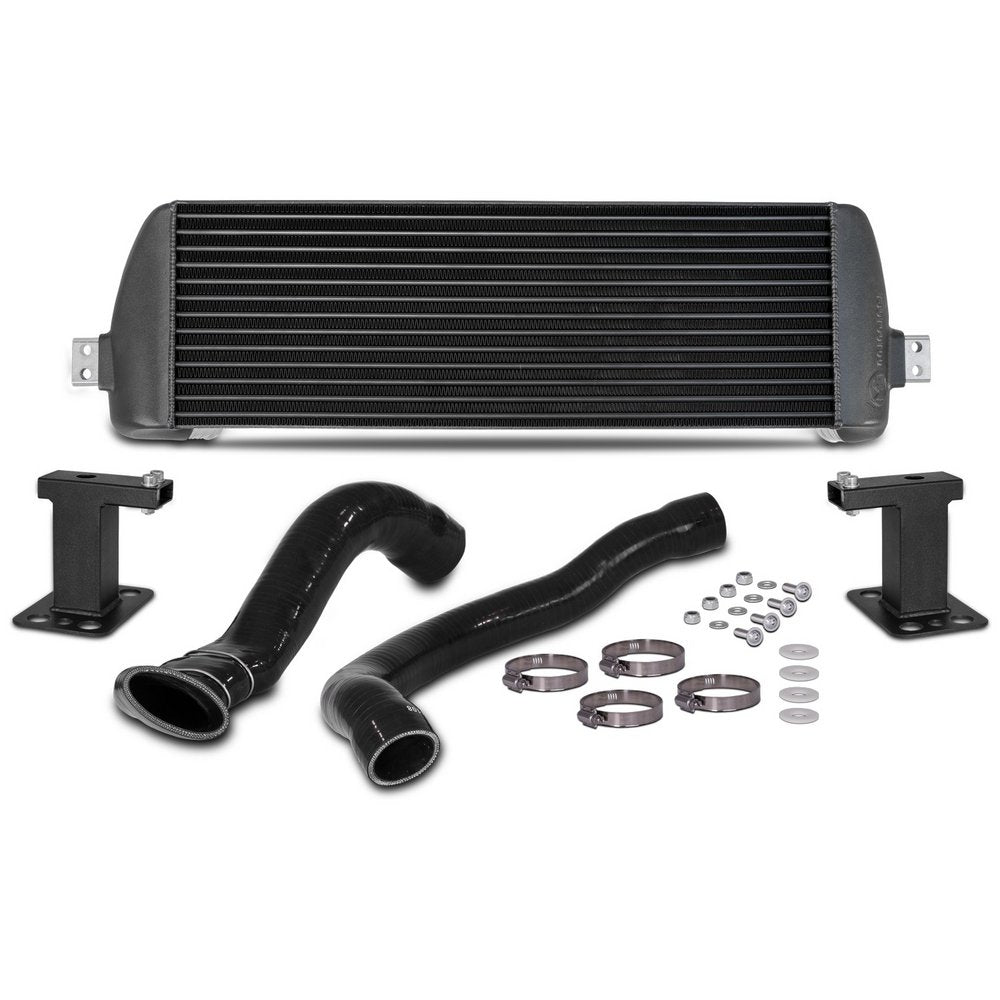

Packing list:
1 Intercooler (black coated)
1 cross member (black coated)
2 silicone hoses (black)
1 mounting material
1 installation instruction
