Data display Audi A6 4G - Your Display, Your data
Do you need a data display For your Audi A6 4G (C7)? We have the solution For you - the Wagner Tuning Dsiplay MFD32 Gen2, specially designed For the Audi A6 4G C7 (Model C7, 2011–2018). This display is a perfect fit For the S6, RS6, S7, and RS7 models as well.

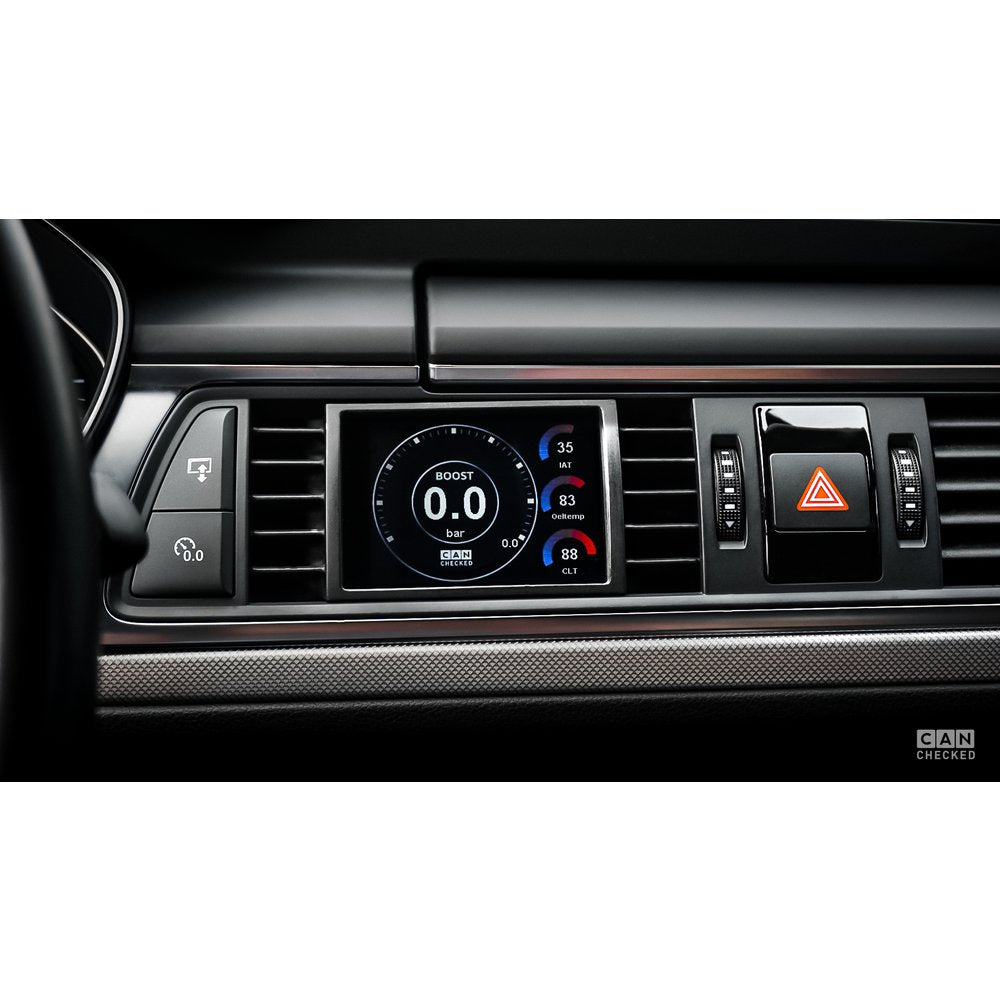

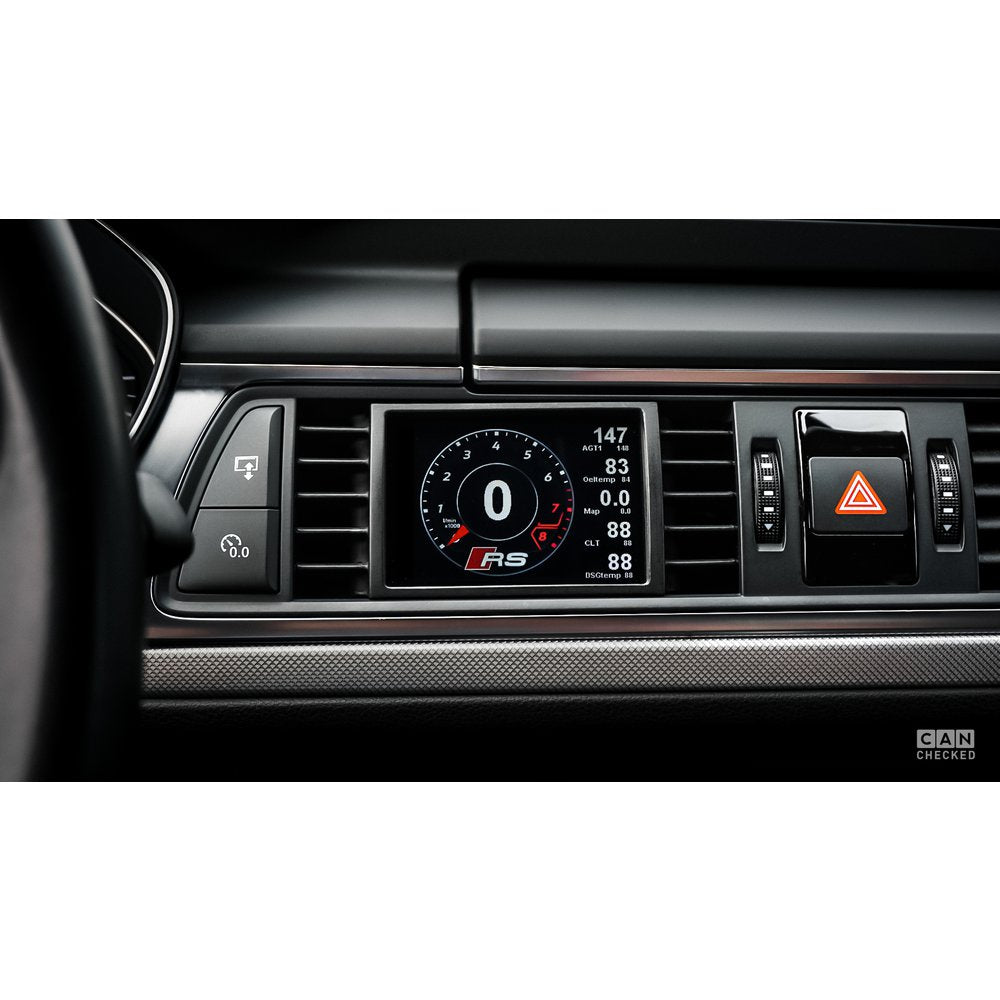

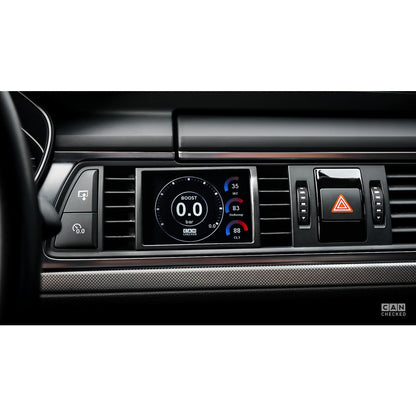

With our display, you gain access to all the data from your vehicle - yes, really all of it, including the Transmission and engine control unit. Our proven display technology presents this data on a high-quality screen (with a 3.2-inch diagonal) and directly queries the sensors via the Can Bus. The Audi A6 4G Display comes with a vehicle-specific frame, seamlessly integrating into the interior while preserving the ventilation slots.
Our display emulates a manufacturer's tester, making all detailed data available. We've optimized the protocol For maximum query speed.
Key Features:
- Perfect integration into the vehicle interior
- Up to 128 sensors can be queried
- 10 individually configurable views using our DSS - Display Setup Software
- Pre-configured views For a quick start with our display
- Easy plug-and-play installation with our cable set - simply plug it in and start using it
- 4 additional analog inputs For exhaust temperature, Oil pressure, and more
- Excellent readability thanks to an optional anti-glare film
- Sensor querying like manufacturer diagnostic tools
Additional Features:

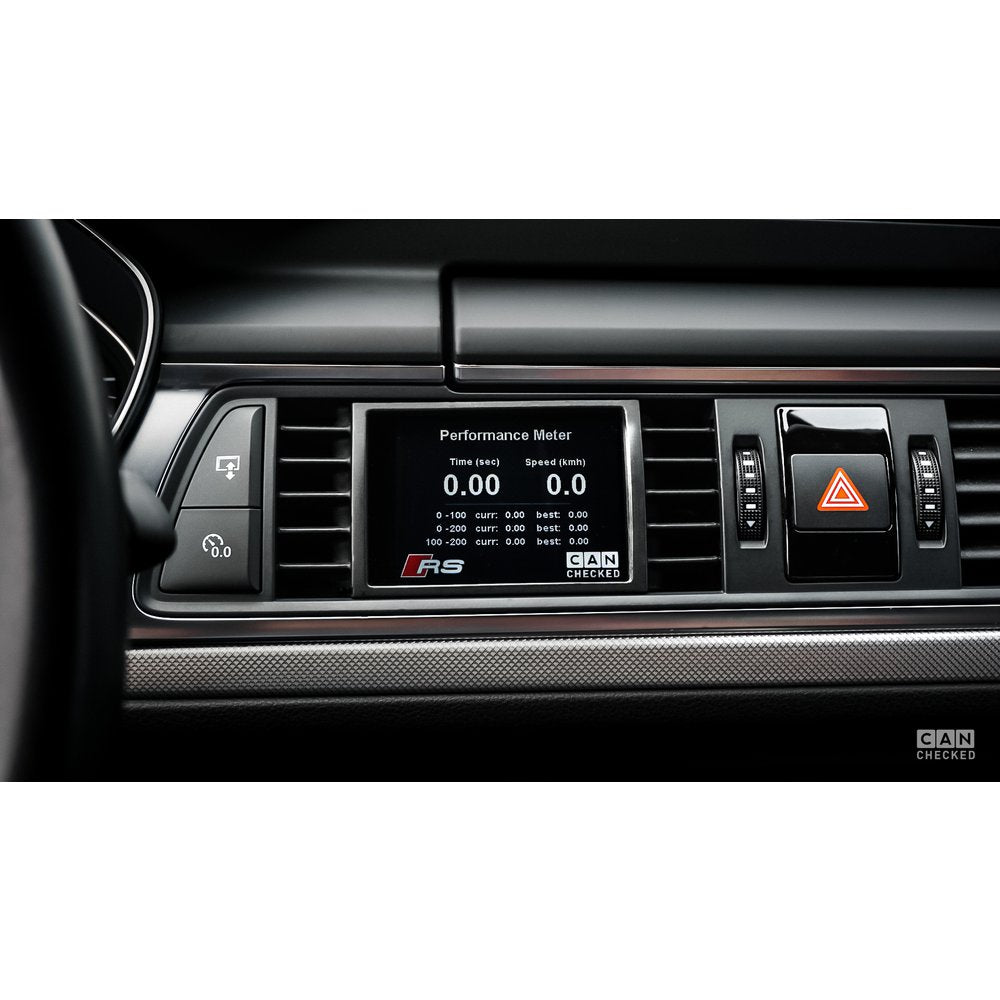

Performance Measurements: Measure your acceleration times with our Performance Widget - 0-100, 100-200, 0-200.
Data Logging: Log all data on an internal SD card - either on-demand (start with a fingertip) or permanently. All data from your last drive is stored.
Pre-set Alerts: Activate and customize pre-set warning messages, For example, a large warning message when the exhaust temperature exceeds 900 degrees.
4 Analog Additional Inputs: Connect additional temperature and/or pressure sensors For more monitoring options, such as exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
Error Reading/Deletion: Read errors from the engine control unit in plain text and delete them.

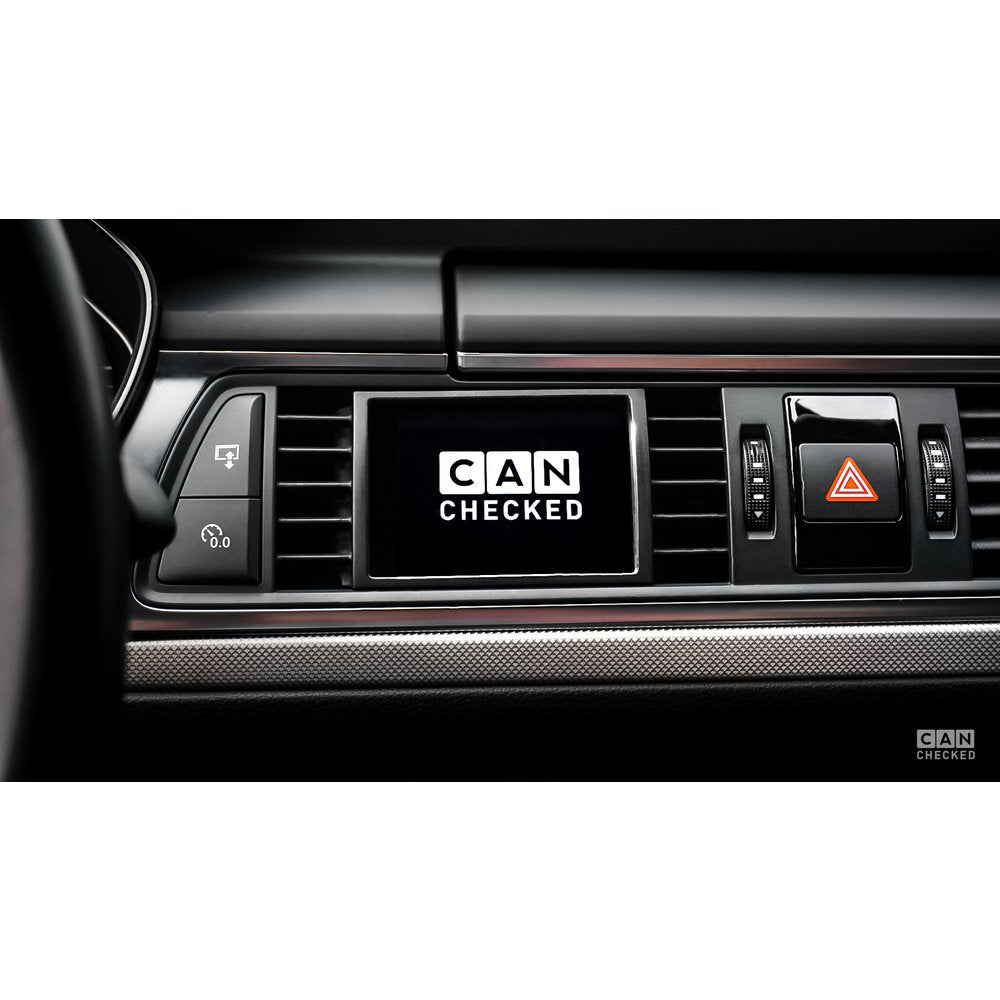

Customization: Customize the startup screen or choose from a variety of different widgets.
Our display seamlessly integrates into both left-hand drive and right-hand drive vehicles.
Access to all data from the engine control unit is made possible by a pre-configured TRI file that comes standard. Here are all the queryable sensors defined, including:
Temperatures: Exhaust temperature, engine coolant temperature, Oil temperature, Intake air temperature, outside temperature, Fuel temperature, Transmission temperature.
Pressures: Boost pressure, ambient pressure, Fuel pressure pre-Fuel pump set/actual, Fuel pressure high-pressure pump set/actual.
Lambda/Mixture: Lambda target/actual, injection time, short-term lambda adaptation, long-term lambda adaptation.
Miscellaneous: RPM, air mass (g/s), vehicle speed, throttle angle, total ignition angle, ignition angle correction per cylinder, N75 activation in %, terminal 30 voltage, torque, gear.
If specific values are missing, they can be easily added depending on the supported sensors in your engine.
The display fits all Audi A6 4G (C7) models, including S6, RS6, S7, and RS7 with left-hand drive. A version For right-hand drive is also available.
For more inFormation or if you have any questions, please feel free to contact us. Please provide your vehicle's engine code when you reach out.

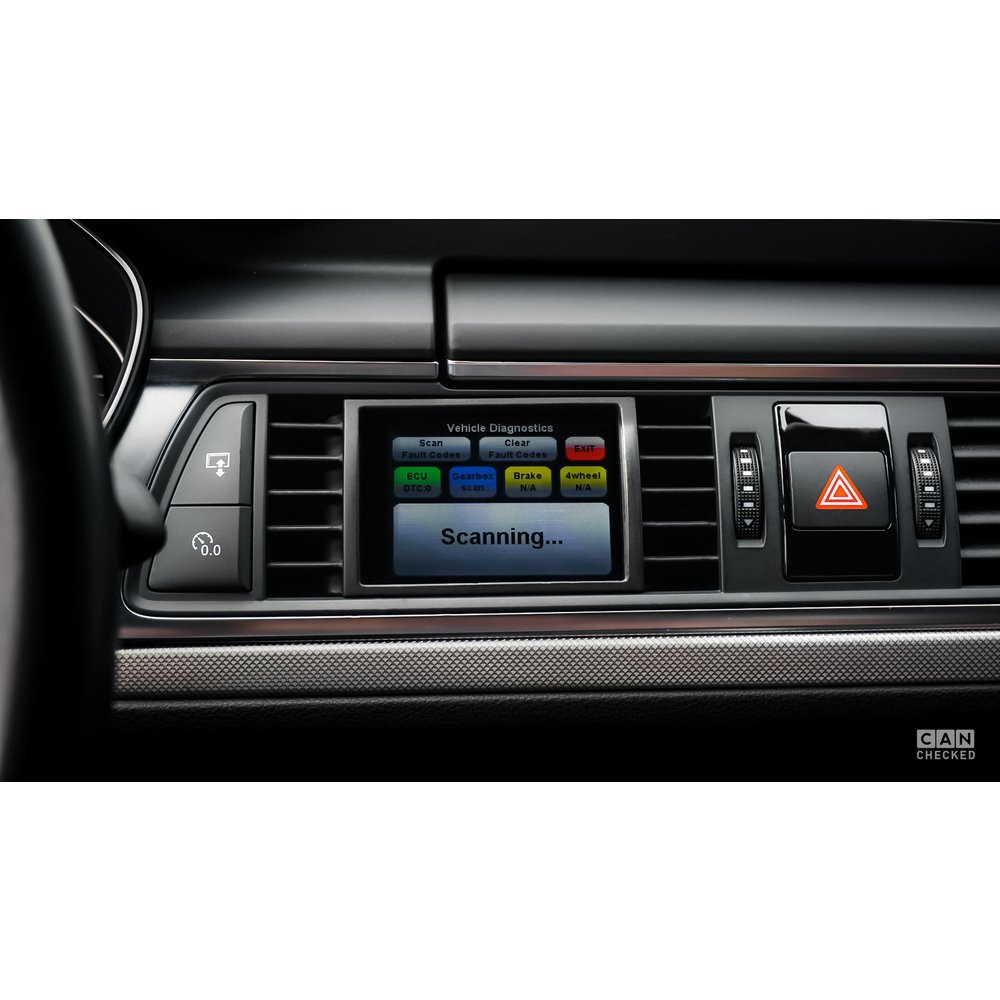

Error Reading and Deletion: Swipe down to access the Diagnostic Trouble Codes (DTC) For the engine, Transmission, ABS, and, if applicable, the all-wheel-drive system (Haldex). You can optionally clear these errors directly from the display. Engine errors are displayed in plain text, allowing you to decide whether to continue driving.
Scope of delivery
Included with every delivery
- MFD32 Gen2 data display integrated in the ventilation insert
- vehicle-specific Connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card Adapter
- Display fOil (to prevent reflections)
Connection and extension
Any sensors can be connected via the four analog inputs - we support linear 0-5V as well as NTC sensors.
Our in-house Wagner Tuning Dsiplay sensors are stored in the TRI/TRX files by default and only need to be connected:
- AIN1: Temperature sensor
- AIN2: Transducer For exhaust gas temperature sensor type K
- AIN3: Pressure sensor 0-10 Bar
- AIN4: boost pressure sensor 0-5,5 Bar absolute
Beside the analog sensors you can also connect our external shift light with 8 LEDs. This can flash in different colors and the speed limits and colors can be configured directly on the display.
You connect the ethanol sensor directly to the display. You need a pullup resistor (10K) between 5V and signal. Then you can view and log the ethanol content and temperature directly on the display.
Advanced functions
With the Math-Channels you can calculate sensors with each other. The User-Table gives you the possibility to generate further sensors with 2D or 3D maps.
Optional accessories
- WT24000 SLM08 - external switching lightning module
- WT22100 CBD08 - eightfold Can Distribution Hub
- WT22902 NTC01 - temperature sensor For liquids 1/8" NPT
- WT22903 TCC01 - type K converter 0-1250°C
- WT22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
- WT22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)
Installation Guide / Download:
We have prepared a detailed installation guide.
If you encounter any issues, our support team is here to assist you. Contact us through our contact Form.
Wagner Tuning Dsiplay.de - Your partner For top-notch vehicle data displays and integration into your Audi A6 4G C7. Make your car smarter and more controllable with our Audi A6 4G Display!
