Golf 5 Display - Unlock the Data Power

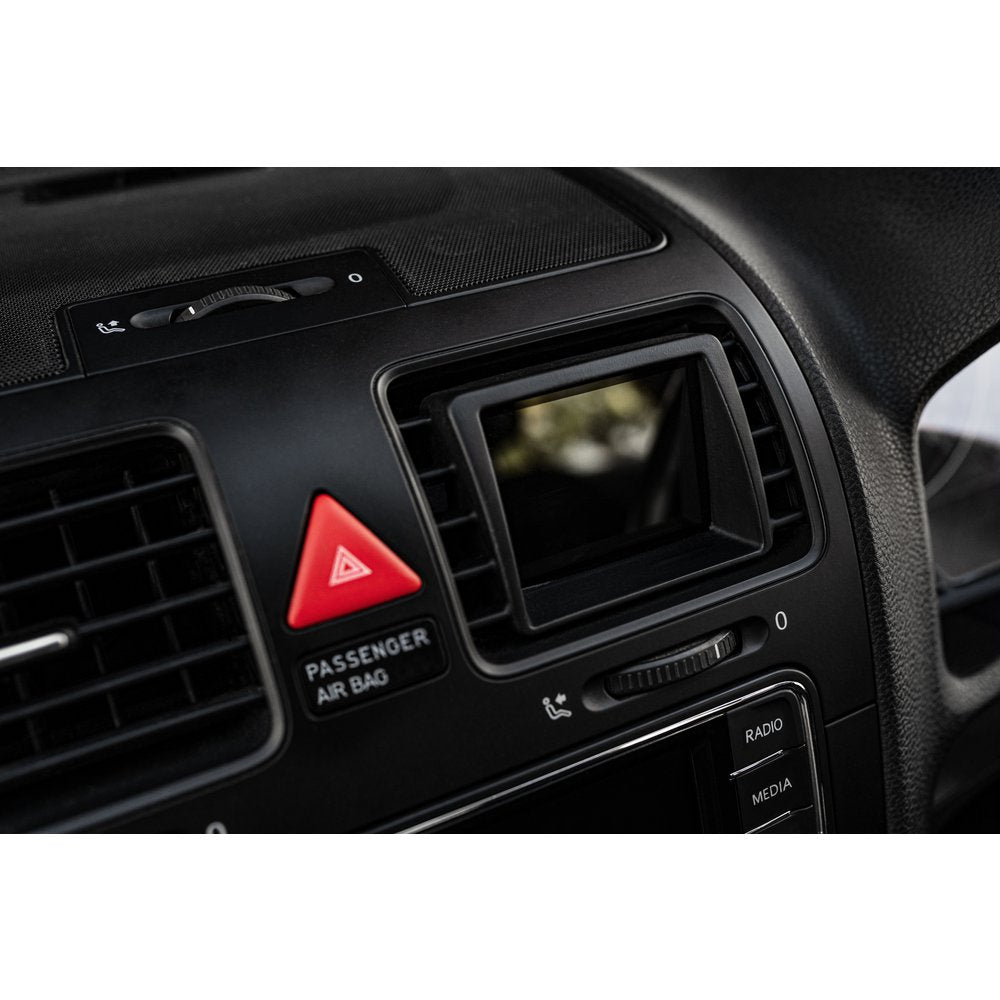

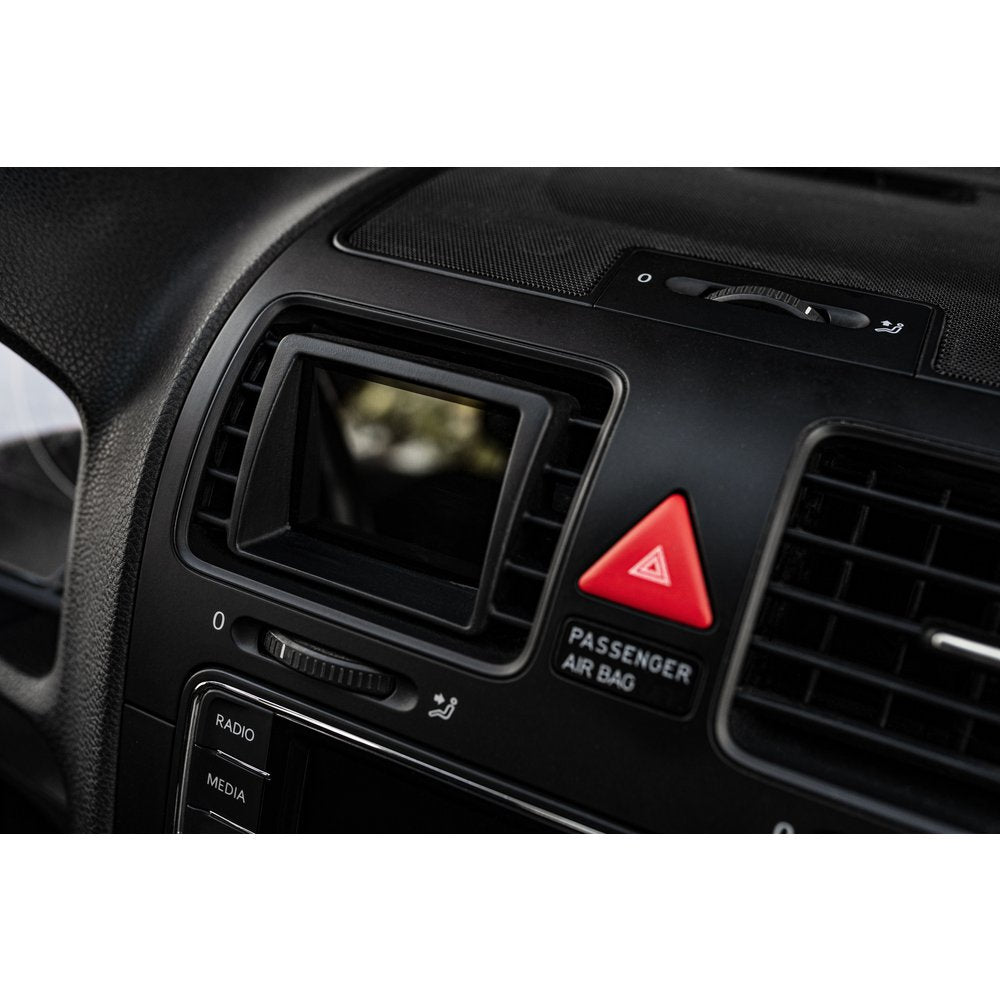

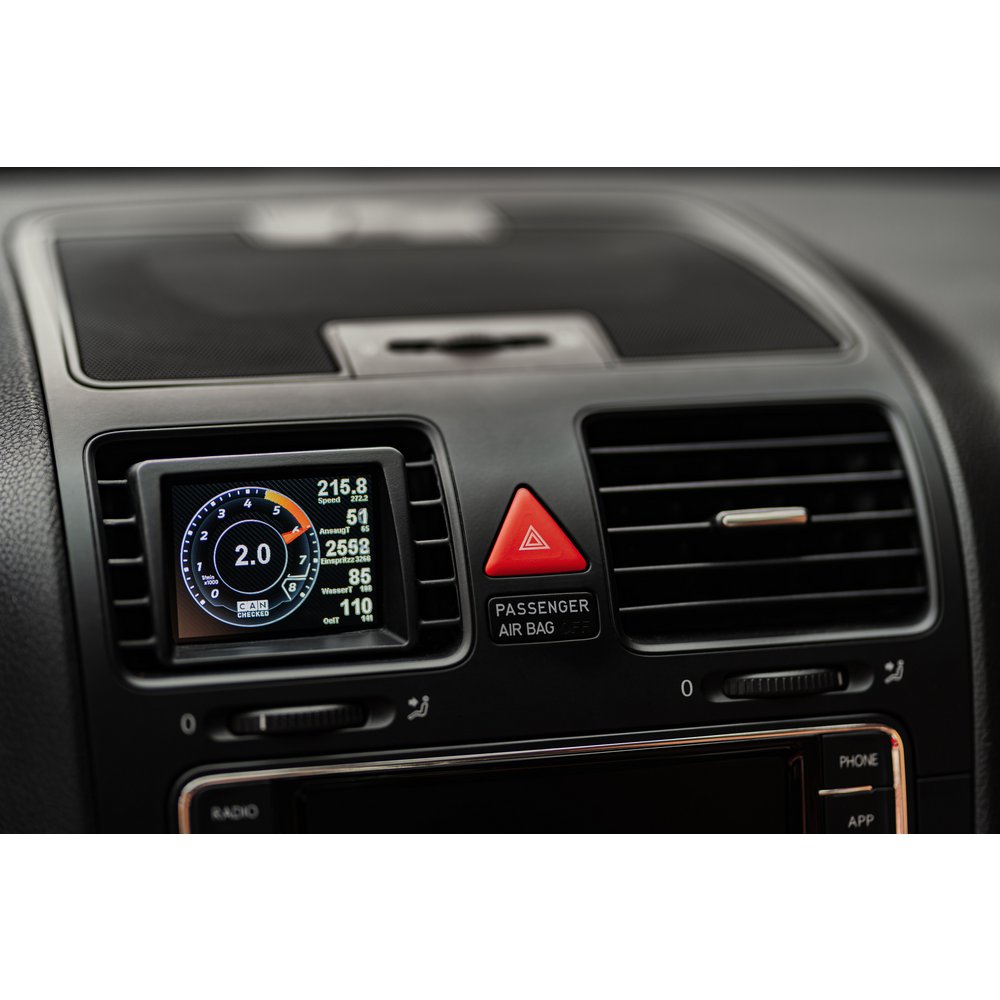

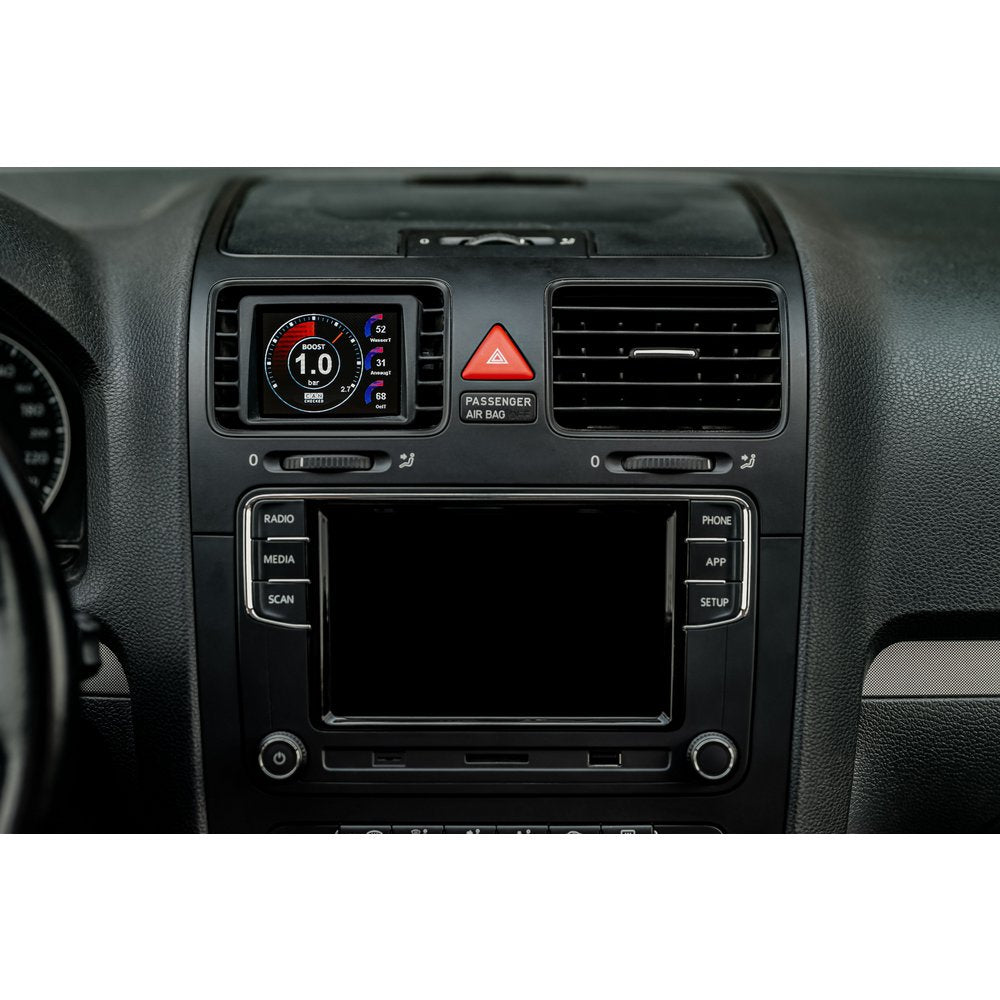

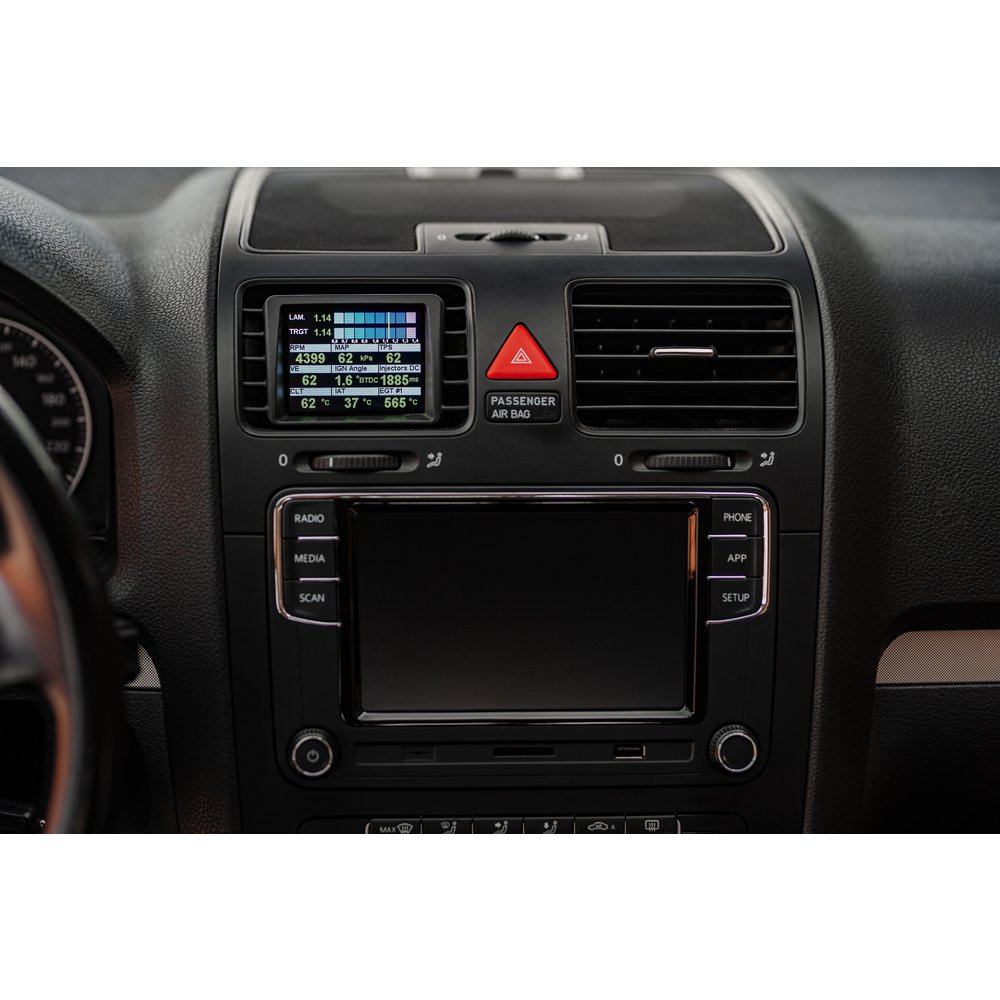

We proudly introduce our cutting-edge display For Golf 5 models. This advanced display grants full access to all your engine control unit (ECU) data, and we mean all of it. Our display directly queries the sensors through the Can-Bus protocol and presents the inFormation on our reliable MFD28 display. The Golf 5 Display seamlessly integrates into your vehicle's interior with a custom-made fascia reminiscent of an original part.
Our manufacturer-specific Can-Bus protocol has been precisely tuned to achieve maximum query speed.
Main Features:
- Seamless integration into your vehicle's interior
- Query up to 128 sensors
- 10 customizable views with our DSS - Display Setup Software
- Pre-configured views For a quick start with our display
- EfFortless plug-and-play installation with our cable set - simply plug it in and you're good to go
- 4 additional analog inputs For monitoring exhaust temperature, Oil pressure, and more
- Direct integration of an ethanol sensor
- Optimal readability with an optional glare screen
- Sensor queries at eye level with manufacturer-specific diagnostic tools
Additional Features:
- Performance Meter: Measure your acceleration times with our Performance widget - 0-100, 100-200, 0-200.
- Data Logging: Log all data on the internal SD card - whether it's on-demand (initiated with a touch) or continuous. All data from your last drive is stored.
- Pre-set Alerts: Enable and customize pre-set alerts, such as a notification when the exhaust temperature exceeds 900 degrees.
- 4 additional analog inputs: Connect additional temperature and/or pressure sensors For more monitoring options, including exhaust temperature or exhaust backpressure. An ethanol sensor can be connected to one of the digital inputs.
- Error Reading/Clearing: Read errors from the engine control unit in plain text and clear them.
- Customizability: Personalize the start screen or choose from various widgets to tailor the display to your preferences.
- Seamless Vehicle Integration: Our display is compatible with all left-hand drive Golf 5 vehicles. A version For right-hand drive (RHD) is in development.
Access to All ECU Data: We provide a pre-configured TRI file For your display as standard. This file defines all queryable sensors, including:
Temperatures: Engine coolant temperature, Intake air temperature, exhaust temperature, Transmission temperature.
Pressures: Boost pressure, ambient pressure, Oil pressure.
Lambda/Fuel Mixture: Lambda target/actual value, short-term lambda adjustment, long-term lambda adjustment, MAF (mass airflow sensor), engine load, torque.
Driver Dynamics: Brake pressure, vehicle speed, throttle angle/gas pedal position.
Others: RPM, total ignition angle, gear, battery voltage, ignition angle correction per cylinder.
Analog Inputs: Additional sensors like Oil temperature, Fuel pressure, Oil pressure, exhaust temperature, and more can be added, as well as an ethanol sensor For flex-Fuel vehicles.
Please note that not every engine provides all of these values.
Compatibility with Golf 5 Models:
The display frame fits all Golf 5 vehicles - left-hand-drive as well as right-hand-drive.
Package Contents:
With each delivery, you'll receive:
- MFD28/32 Gen2 data display integrated into the ventilation insert
- Vehicle-specific Connection cable
- Quickstart Guide
- USB data cable
- SD card (pre-installed in the display)
- SD card Adapter
- Display film (to prevent reflections)
Connection and Expansion:
You can connect various sensors through the four analog inputs - we support both linear 0-5V and NTC sensors.
Our in-house Wagner Tuning Dsiplay sensors are pre-configured in the TRI/TRX files and only need to be connected:
- AIN1: Temperature sensor
- AIN2: Converter For Type K exhaust temperature probe
- AIN3: Pressure sensor 0-10 Bar
- AIN4: Boost pressure sensor 0-5.5 Bar absolute
In addition to analog sensors, you can also connect our external flash module with 8 LEDs. It can flash in various colors, and the RPM limits and colors can be configured directly on the display.
You connect the ethanol sensor directly to the display. You'll need a pull-up resistor (10K) between 5V and the signal. Afterward, you can view and log the ethanol content and temperature directly on the display.
Advanced Features:
You can use Math Channels to calculate sensors against each other. The User Tables allow you to generate additional sensors using 2D or 3D maps.
Optional Accessories:
- WT24000 SLM08 - External Flash Module
- WT22100 CBD08 - Eightfold Can Distribution Hub
- WT22902 NTC01 - Temperature Sensor For Liquids 1/8 NPT
- WT22903 TCC01 - Type K Converter 0-1250øC
- WT22901 FLP01 - Pressure Sensor 0-10 Bar (145psi) M10x1
- WT22900 BST01 - Pressure Sensor 0-5.5 Bar Absolute (80psi)
Installation Guide:
We provide an illustrated installation guide to ensure a smooth installation process.
Unleash the full potential of your Golf 5 with our advanced display. If you have any questions or need further inFormation, we are here to help.
